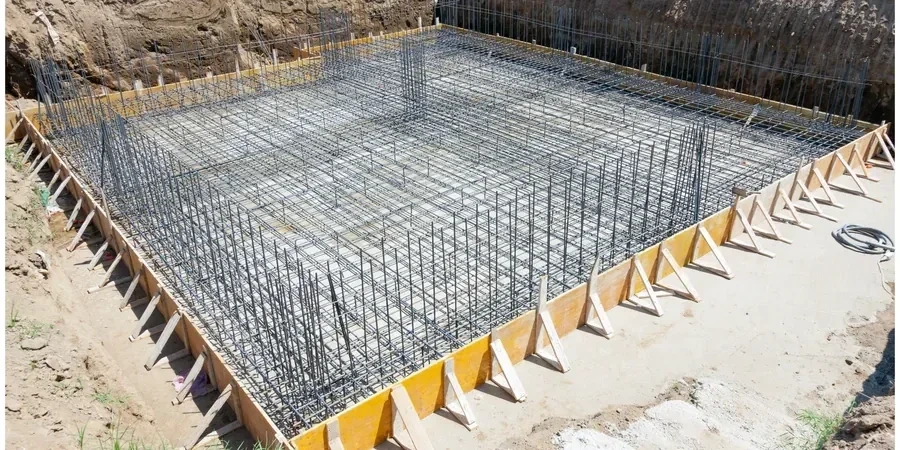

A six-storey apartment block near Leeds city centre was our recent challenge. The developer needed a foundation that could spread column loads across variable ground without differential movement. We designed a reinforced concrete raft slab that distributes building loads into the underlying bedrock and glacial till. Before finalising the geometry, we cross-referenced borehole logs with a densidad-cono-arena field test to verify compaction on site. The result was a 600mm thick mat that saved the client weeks of piling time and kept the project within budget.
A well-designed raft mat reduces settlement differences to under 15mm in Leeds' variable glacial till, avoiding costly structural repairs later.
Scope of work in Leeds
Critical ground factors in Leeds
Leeds receives around 660mm of rainfall annually, much of it concentrated in autumn and winter. High moisture content in the upper clay layers can soften the ground and reduce bearing capacity just when construction is busiest. If the raft is poured during wet weather without adequate drainage, pore pressures build up beneath the slab and risk heave or long-term creep. We counter this by specifying a granular drainage blanket and a permeabilidad-campo test to confirm flow rates before concreting. On brownfield sites we also check for old mine entries that could collapse under the raft's edge load.
This service complements our laboratory testing work for a complete project analysis.
Our services
Our raft foundation design service in Leeds covers every stage from desk study to construction support. We tailor each solution to the site's geology and the building's load regime.
Ground Investigation & Soil Profiling
Boreholes, trial pits, and CPT soundings to map the glacial till and identify any shallow mine workings.
Raft Slab Structural Design
Finite element analysis to size reinforcement and slab thickness, with settlement verification under all load cases.
Settlement & Differential Movement Analysis
Consolidation tests and numerical modelling to keep total and differential settlements within 15mm.
Construction Supervision & Quality Control
On-site monitoring of concrete placement, compaction of sub-base, and verification of design assumptions.
FAQ
When is a raft foundation better than strip footings in Leeds?
A raft mat is ideal where the bearing capacity of the glacial till is low or variable, or where the building has closely spaced columns. It spreads loads uniformly and reduces differential settlement. Strip footings can work on uniform stiff clays, but Leeds' mixed geology often makes a raft the more reliable choice.
How do you handle old mine workings under a raft foundation in Leeds?
We first review Coal Authority records and historical maps. If shallow workings are confirmed, we core through the shaft or tunnel and grout any voids. The raft is then designed with additional reinforcement over the treated area to span any potential soft zone.
What is the typical cost range for a raft foundation design in Leeds?
The design fee for a standard residential or light commercial raft in Leeds usually falls between £780 and £2,900. The final cost depends on site complexity, number of load cases, and whether a structural model or a simplified hand calculation is required.
Do you check for groundwater effects before finalising the raft design?
Yes. We install standpipes or piezometers during the ground investigation and measure the seasonal high water table. If groundwater rises close to formation level, we incorporate a drainage layer and a waterproofing membrane to prevent hydrostatic uplift and long-term moisture migration.
